MasterSwitch Plus

MasterSwitch plus
Advanced, remote power control and load shedding to mission critical networking and internetworking equipment

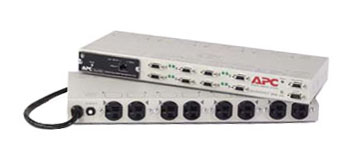

MasterSwitch plus is a remote power distribution unit (PDU) that allows users to individually control power to connected devices and gracefully shutdown or reboot up to eight connected servers of different operating systems.


 Model Information

120 V ( Nominal input voltage )
Technical Specifications Part Number Estimated Retail Price **
MasterSwitch Plus AP9225 699.00 USD
MasterSwitch plus Expansion Unit AP9225EXP 449.00 USD
* Denotes regional product availability by voltage requirement.
** Without TAX/VAT

 Features & Benefits
Multiple Accounts Administrators have the ability to assign individual outlets or groups of outlets to specific users. Password protected User, Administrator, and Device Manager accounts ensure restricted access to system, device, and outlet level services.
Graceful Shutdown and Load Shedding Allows for automatic shutdown of connected servers attached to an APC UPS when the UPS enters "On-Battery" state and for the attached outlet to be turned off after the server has confirmed shutdown.
Graceful reboot Shutdown servers before cycling power to the equipment.
Eight channels of manageable power Control eight on-board power outlets for complete and flexible management of connected equipment
HTTP & telnet control Manage connected devices via a web-based interface via built-in Ethernet and telnet.
Control UPS power output Use MasterSwitch plus to power down connected equipment on an outlet by outlet basis to conserve battery backup power.
Power-up sequencing Users are able to configure the sequence in which power is provided to individual receptacles upon startup.
Daisy Chainable Allows for up to three AP9225EXP units to be connected serially to one AP9225, providing control of 32 connected devices with one IP address.
Flash Upgradeability Upgrade firmware via internet downloads for future enhancements.
MD-5 Security Enhanced security for remote access via world wide web.
Annunciator Mode Toggle outlets in response to environmental alarms when used in conjunction with the environmental management card AP9612TH.
Warranty & Approvals
Two-Year Comprehensive Product Warranty All APC products come with a comprehensive two-year warranty which covers all parts and labor, even those we don't make ourselves, like the battery.
Industry Approvals UL & CSA approvals mean a safe, reliable solution to power problems.
