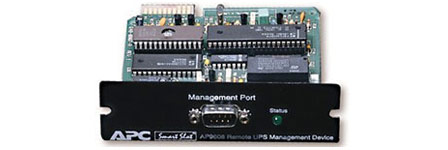

Out-of-Band Smartslot Card

UPS card for network administrators to manage UPSs remotely via modem throughout the network.

With APC's Out-of-Band Management Card, you can integrate "out-of-band" power management directly into SmartSlot-equipped UPSs to provide complete UPS management and control via an external modem that you supply. APC's Out-of-Band Management Card allows you to determine UPS and power status, monitor environmental conditions (with optional SmartSlot Measure-UPS II), configure UPS settings, page users in response to critical UPS events, and reboot devices even when network communications are not available.

Model Information

Technical Specifications

Part Number

Estimated Retail Price **

Out-of-Band Management SmartSlot Card

AP9608

159.00 USD

** Without TAX/VAT

Features & Benefits

Status info and control via modem

Complete power information, UPS status and environmental conditions (using Measure-UPS Accessory) can be accessed remotely and easily
Run UPS tests, configure Call-UPS and change UPS internal parameters remotely
Out-of-Band Management Card offers extensive capabilities to re-boot “locked-up” devices safely and easily, without having to travel to the site
Power event log and on-line data logging capabilities allow easy remote troubleshooting
User friendly, menu-based interface

Paging capabilities

Out-of-Band Management Card can dial two (2) pagers to alert you about potential problems at specific sites
Fully configurable paging allows you to choose who gets paged for which conditions

Security features

User-selectable password protection
Dial back security option

Warranty & Approvals

Two-Year Comprehensive Product Warranty

All APC UPS products come with a comprehensive two-year warranty which covers all parts and labor, even those we don’t make ourselves, like the battery.

Industry Approvals

FCC Class B, EN50022, EN50082-1
