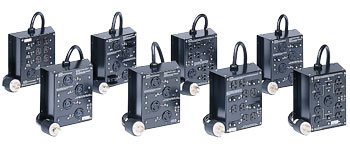

Due to the wide range of applications for the Matrix-UPS, your application may have unique electrical outlet needs. To accommodate those needs, APC offers the CCPDU accessory. These CCPDUs plug into one of the outlets on the Matrix standard back panel to provide for a variety of outlet configurations. If the configurations outlined here do not meet your requirements, contact APC Technical Support.
MXA101 MXA102 MXA103
MXA104 MXA105 MXA106
MXA107 MXA108

Note: The CCPDUs are intended to provide the appropriate quantity and type of outlets. The CCPDU is not intended to add lengths to cable runs other than its inherent 4' cord.

Note: The CCPDUs plug directly into the back of Matrix-UPS and should not be used with wall outlets.

Note: The CCPDUs are only for use in the US, Canada and Japan.
Hardwire Kit Hardware Kit

APC offers a hardware kit to be used with the Matrix-UPS product. This hardware kit replaces the standard back panel and allows the Matrix to be wired directly into your service panel by a qualified electrician. Output voltages of 120V, 208V, and 240V are available using the hardware kit.
Part number: MXA001 - for Matrix-UPS 5000, MXA002 - for Matrix-UPS 3000.
