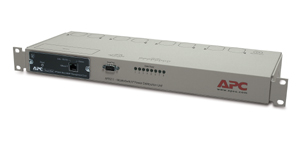

| MasterSwitch Part Number : AP9211 Estimated Retail Price : 449.00 USD * Availability : North America, Latin America, Japan
|
 |
|||
|
||||
 |
||||
| General Features | Boot-P support, Built-in Web/SNMP management, Defineable Outlet Control, E-mail notification, Event Configuration, Flash Upgradeable, MD5 Authentication Security, Web Management, Wireless Application Protocol (WAP) | |||
|
||||
| Includes | User Manual, Rack Mounting Brackets, CD with software | |||
|
||||
| Documentation | User
Manual Installation Guide |
|||
|
||||
|
||||
|
||||
| Output | ||||
|
||||
| Maximum Total Current Draw | 12 | |||
|
||||
| Output Connections |
|
|||
|
||||
| Always on Outlets | 0 | |||
|
||||
| Overload Protection | Yes | |||
|
||||
|
||||
| Input | ||||
|
||||
| Nominal input voltage | 120 | |||
|
||||
| Input frequency (Hz) | 50/60 Hz +/- 3 Hz (auto sensing) | |||
|
||||
| Input Connection Type | NEMA 5-15P | |||
|
||||
| Acceptable Input Voltage | 100-125 VAC | |||
|
||||
| Maximum Line Current | 12 A | |||
|
||||
| Maximum Input Current | 12 A | |||
|
||||
| Load Capacity | 1440 | |||
|
||||
| Load Power Factor Range | N/A | |||
|
||||
| Maximum Crest Factor | 3.56 | |||
|
||||
|
||||
| Physical | ||||
|
||||
| Net weight | 6.50 lbs ( 2.95 kg) | |||
|
||||
| Net Height | 1.75 inches ( 4.45 cm) | |||
|
||||
| Net Width | 17.00 inches ( 43.18 cm) | |||
|
||||
| Net Depth | 6.50 inches ( 16.51 cm) | |||
|
||||
| Shipping Weight | 9.50 lbs ( 4.32 kg) | |||
|
||||
| Shipping Height | 2.75 ( 6.99 cm) | |||
|
||||
| Shipping Width | 18.50 inches ( 46.99 cm) | |||
|
||||
| Shipping Depth | 13.50 inches ( 34.29 cm) | |||
|
||||
| Color | Beige | |||
|
||||
| Units per Pallette | 100.0 | |||
|
||||
|
||||
| Environmental | ||||
|
||||
| Operating Temperature | 0 - 45 °C (32 - 113 °F) | |||
|
||||
| Operating Relative Humidity | 0 - 95 % | |||
|
||||
| Operating Elevation | 0-10000 ft (0-3000 m) | |||
|
||||
| Storage Temperature | -15 - 65 °C (5 - 149 °F) | |||
|
||||
| Storage Relative Humidity | 0 - 95 % | |||
|
||||
| Storage Elevation | 0-50000 ft (0-15000 m) | |||
|
||||
|
||||
| Conformance | ||||
|
||||
| Approvals | C-tick, CE, CSA, CSA 22.2 No. 950, DOC/Industry Cananda, FCC Part 15 Class A, UL 1950, UL Listed, VCCI | |||
|
||||
| Standard warranty | 2 years repair or replace | |||
|
||||
|
||||
|
* Without TAX/VAT |
||||
