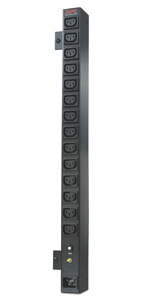

| Rack Outlet
Strip (Vertical; IEC C-20 inlet, (14) IEC C-13 outlets) Part Number : AP9554 Estimated Retail Price : 189.00 USD * Availability : North America, Latin America, Mexico, Eastern Europe : Middle East : Africa, Western Europe, China, Japan, Taiwan, India, Asia : Australia : South Pacific, Saudi Arabia |
 |
|||
|
||||
 |
||||
| General Features | Zero U Rack Mounting Abilities | |||
|
||||
| Includes | User Manual, Rack Mounting Brackets, Country-specific detachable power cord | |||
|
||||
| Documentation | User
Manual Installation Guide |
|||
|
||||
|
|
||||
|
||||
| Output | ||||
|
||||
| Maximum Total Current Draw | 16 | |||
|
||||
| Output Connections |
|
|||
|
||||
| Always on Outlets | 14 | |||
|
||||
| Overload Protection | No | |||
|
||||
|
||||
| Input | ||||
|
||||
| Nominal input voltage | 208, 230 | |||
|
||||
| Input frequency (Hz) | 50/60 Hz | |||
|
||||
| Input Connection Type | IEC-320 C20 | |||
|
||||
| Acceptable Input Voltage | 90-253 VAC | |||
|
||||
| Maximum Line Current | 16 A | |||
|
||||
| Maximum Input Current | 16 A | |||
|
||||
| Load Capacity | 3680 | |||
|
||||
| Maximum Crest Factor | 0.00 | |||
|
||||
|
||||
| Physical | ||||
|
||||
| Net weight | 4.50 lbs ( 2.05 kg) | |||
|
||||
| Net Height | 24.40 inches ( 61.98 cm) | |||
|
||||
| Net Width | 1.75 inches ( 4.45 cm) | |||
|
||||
| Net Depth | 2.25 inches ( 5.72 cm) | |||
|
||||
| Shipping Weight | 6.50 lbs ( 2.95 kg) | |||
|
||||
| Shipping Height | 25.50 ( 64.77 cm) | |||
|
||||
| Shipping Width | 6.00 inches ( 15.24 cm) | |||
|
||||
| Shipping Depth | 7.00 inches ( 17.78 cm) | |||
|
||||
| Color | Black | |||
|
||||
| Units per Pallette | 100.0 | |||
|
||||
|
||||
| Environmental | ||||
|
||||
| Operating Temperature | 0 - 40 °C (32 - 104 °F) | |||
|
||||
| Operating Relative Humidity | 0 - 95 % | |||
|
||||
| Operating Elevation | 0-10000 ft (0-3000 m) | |||
|
||||
| Storage Temperature | -15 - 65 °C (5 - 149 °F) | |||
|
||||
| Storage Relative Humidity | 0 - 95 % | |||
|
||||
| Storage Elevation | 0-50000 ft (0-15000 m) | |||
|
||||
|
||||
| Conformance | ||||
|
||||
| Approvals | CE, EN 60950, UL 1950, UL Listed, cUL Listed, VDE | |||
|
||||
| Standard warranty | 2 years repair or replace | |||
|
||||
|
||||
|
* Without TAX/VAT |
||||
