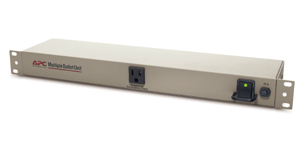

| Rack Outlet
Strip (Horizontal; NEMA 5-15P, (9) NEMA 5-15R) Part Number : MO9RM Estimated Retail Price : 79.00 USD * Availability : North America |
 |
|||
|
||||
 |
||||
| General Features | Zero U Rack Mounting Abilities | |||
|
||||
| Includes | User Manual, Rack Mounting Brackets | |||
|
||||
| Documentation | User
Manual Installation Guide |
|||
|
||||
|
|
||||
|
||||
| Output | ||||
|
||||
| Maximum Total Current Draw | 15 | |||
|
||||
| Output Connections |
|
|||
|
||||
| Always on Outlets | 9 | |||
|
||||
| Overload Protection | Yes | |||
|
||||
|
||||
| Input | ||||
|
||||
| Nominal input voltage | 120 | |||
|
||||
| Input frequency (Hz) | 50/60 Hz | |||
|
||||
| Input Connection Type | NEMA 5-15P | |||
|
||||
| Acceptable Input Voltage | 100-125 VAC | |||
|
||||
| Maximum Line Current | 15 A | |||
|
||||
| Maximum Input Current | 15 A | |||
|
||||
| Load Capacity | 1800 | |||
|
||||
| Maximum Crest Factor | 0.00 | |||
|
||||
|
||||
| Physical | ||||
|
||||
| Net weight | 4.70 lbs ( 2.14 kg) | |||
|
||||
| Net Height | 1.75 inches ( 4.45 cm) | |||
|
||||
| Net Width | 18.00 inches ( 45.72 cm) | |||
|
||||
| Net Depth | 5.75 inches ( 14.61 cm) | |||
|
||||
| Shipping Weight | 6.20 lbs ( 2.82 kg) | |||
|
||||
| Shipping Height | 2.75 ( 6.99 cm) | |||
|
||||
| Shipping Width | 18.50 inches ( 46.99 cm) | |||
|
||||
| Shipping Depth | 13.50 inches ( 34.29 cm) | |||
|
||||
| Color | Beige | |||
|
||||
| Units per Pallette | 100.0 | |||
|
||||
|
||||
| Environmental | ||||
|
||||
| Operating Temperature | 0 - 45 °C (32 - 113 °F) | |||
|
||||
| Operating Relative Humidity | 0 - 95 % | |||
|
||||
| Operating Elevation | 0-10000 ft (0-3000 m) | |||
|
||||
| Storage Temperature | -15 - 65 °C (5 - 149 °F) | |||
|
||||
| Storage Relative Humidity | 0 - 95 % | |||
|
||||
| Storage Elevation | 0-50000 ft (0-15000 m) | |||
|
||||
|
||||
| Conformance | ||||
|
||||
| Approvals | CSA, UL 1363, UL Recognized | |||
|
||||
| Standard warranty | Lifetime | |||
|
||||
|
||||
|
* Without TAX/VAT |
||||
