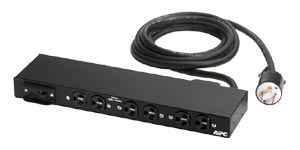

| 20 AMP RACK
MOUNTABLE PDU Part Number : SP12RM-20 Estimated Retail Price : 225.00 USD * Availability : North America |
 |
|||
|
||||
 |
||||
| General Features | Zero U Rack Mounting Abilities | |||
|
||||
| Includes | Rack Mounting Brackets | |||
|
||||
| Documentation | User
Manual |
|||
|
||||
|
|
||||
|
||||
| Output | ||||
|
||||
| Maximum Total Current Draw | 24 | |||
|
||||
| Output Connections |
|
|||
|
||||
| Always on Outlets | 12 | |||
|
||||
| Overload Protection | Yes | |||
|
||||
|
||||
| Input | ||||
|
||||
| Nominal input voltage | 120 | |||
|
||||
| Input frequency (Hz) | 50/60 Hz | |||
|
||||
| Input Connection Type | NEMA L5-30P (30A Twist-Lock) | |||
|
||||
| Acceptable Input Voltage | 100-125 VAC | |||
|
||||
| Maximum Line Current | 24 A | |||
|
||||
| Maximum Input Current | 24 A | |||
|
||||
| Load Capacity | 0 | |||
|
||||
| Maximum Crest Factor | 0.00 | |||
|
||||
|
||||
| Physical | ||||
|
||||
| Net weight | 9.50 lbs ( 4.32 kg) | |||
|
||||
| Net Height | 1.70 inches ( 4.32 cm) | |||
|
||||
| Net Width | 17.30 inches ( 43.94 cm) | |||
|
||||
| Net Depth | 5.90 inches ( 14.99 cm) | |||
|
||||
| Shipping Weight | 10.50 lbs ( 4.77 kg) | |||
|
||||
| Shipping Height | 2.75 ( 6.99 cm) | |||
|
||||
| Shipping Width | 18.50 inches ( 46.99 cm) | |||
|
||||
| Shipping Depth | 13.50 inches ( 34.29 cm) | |||
|
||||
| Color | Black | |||
|
||||
| Units per Pallette | 100.0 | |||
|
||||
|
||||
| Environmental | ||||
|
||||
| Operating Temperature | 0 - 45 °C (32 - 113 °F) | |||
|
||||
| Operating Relative Humidity | 0 - 95 % | |||
|
||||
| Operating Elevation | 0-10000 ft (0-3000 m) | |||
|
||||
| Storage Temperature | -25 - 65 °C (-13 - 149 °F) | |||
|
||||
| Storage Relative Humidity | 0 - 95 % | |||
|
||||
| Storage Elevation | 0-50000 ft (0-15000 m) | |||
|
||||
|
||||
| Conformance | ||||
|
||||
| Standard warranty | 2 years repair or replace | |||
|
||||
|
||||
|
* Without TAX/VAT |
||||
