MasterSwitch

Test Drive the online demo

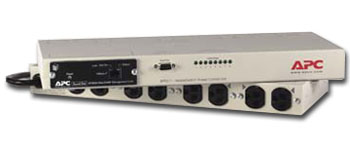

MasterSwitch
Advanced, remote power control to mission critical networking and internetworking equipment

MasterSwitch is a remote power distribution unit (PDU) that allows users to control power to connected devices.

 Model Information

120 V ( Nominal input voltage )
Technical Specifications Part Number Estimated Retail Price **
MasterSwitch AP9211 449.00 USD
MasterSwitch (20A) AP9217 489.00 USD

208, 230 V ( Nominal input voltage )
Technical Specifications Part Number Estimated Retail Price **
MasterSwitch (IEC) AP9212 449.00 USD
* Denotes regional product availability by voltage requirement.
** Without TAX/VAT



 Features and Benefits
Flash Upgradeability Upgrade firmware via internet downloads for future enhancements.
MD-5 Security Enhanced security for remote access via world wide web.
New Web Interface Easier to use, follows APC's standard look and feel.
Universal Power Supply Allows for power range of 100V to 230V
Define multiple users and give access to specifc outlets Focused toward the ISP/CoLo's that have multiple customers on a single unit.
Eight channels of manageable power Individually control eight on-board power outlets for complete and flexible management of connected equipment
HTTP, SNMP & telnet control Manage connected devices via a web-based interface or with native SNMP management platforms and telnet.
Control UPS power output Wherever you use an APC UPS, you can use MasterSwitch to power down connected equipment on an outlet by outlet basis to conserve battery back-up power.
Power-up sequencing Users can configure the sequence in which power is provided to individual receptacles upon startup.
LAN connectivity Built-in Ethernet interface for direct connection to LAN.
LED status check Front panel LEDs provide a quick status check of powered loads.
Warranty & Approvals
Two-Year Comprehensive Product Warranty All APC UPS products come with a comprehensive two-year warranty which covers all parts and labor, even those we don’t make ourselves, like the battery.
Industry Approvals UL & CSA approvals mean a safe, reliable solution to power problems.
