Power Array^™
provides the flexibility to meet the needs of any mid-size datacenter.

Step 1: Choose a maximum system capacity

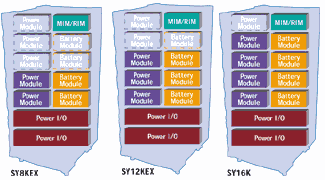

Choose the Symmetra^® system you need based on your current VA load and future need to expand power. Note: Symmetra^® systems with an EX in the part number indicate room for expansion.

Max 8kVA

Max 16kVA

Step 2: What are your current power requirements

Each Power Module adds 4kVA to your systems capacity, up to the maximum capacity from step 1. For example, 2 power modules provide 8kVA of power handling, add a third module to get 12kVA.

Step 3: What is your voltage system

In the USA
208VAC or 240VAC Input Voltage

Step 4: Determine the unit to order

Required Load	International Configurations		USA Configurations
Maximum Capacity	8 kVA max	16 kVA max	8 kVA max	16 kVA max
4 kVA	SY4KEXI	n/a	SY4EX SY4KEX-PD	n/a
8 kVA	SY8KI	SY8KEXI SY8KEX3I	SY8K SY8K-PD	SY8KEX SY8KEX-PD
12 kVA	n/a	SY12KEXI SY12KEX3I	n/a	SY12KEX SY12KEX-PD
16 kVA	n/a	SY16KI SY16K3I	n/a	SY16K SY16K-PD

*If your system is a USA configuration and you want an integrated PDU, use the part number with the “–PD”. If you want hardwired installation, use the part number without the “–PD”

Step 5: Add a Power Module for N+1 redundancy

An additional power module creates an N+1 redundant system to satisfy your high availability needs. All units have the ability to add an additional module for redundancy.

Step 6: Choose an Extended Runtime Solution for longer runtime needs

Symmetra Power Array Battery Frames and Battery Cabinets offer multiple options for extending your Symmetra's runtime. The Symmetra Power Array Battery Frames continue APC’s pioneering, Power Array Technology into extended run battery frames. The fundamental Power Array requirements of redundancy, scaleability, serviceability and manageability are all met with this intelligent battery frame.

Step 7: Add management accessories

UPS Management: Management accessories for adding additional functionality to your APC UPS

Step 8: Add service programs or extended warranty options

APC offers installation and extended warranty services.
