 UPS network interface card that provides standards-based management of UPSs in racks, computer rooms, and data center environments.

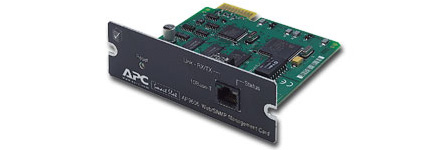

APC Web/SNMP Management Card, a web based UPS Management product, provides full management of UPSs via multiple open standards like Telnet, HTTP, and SNMP. It is a full-featured, robust power management product that is certified for and tightly integrated with Large Corporation Management products. Through the Web/SNMP Management Card, you can monitor and configure your APC UPSs to shut down and reboot your computer systems, receive email alerts and view the event log. With a wap enabled mobile phone you can check the status of most Smart-UPS and Matrix-UPSs.
|
|
 |
||||||||||||||||||||||||
|
||||||||||||||||||||||||
|
||||
| Current Version | ||||
|
||||
| APC Web/SNMP Management Card v3.1.1 10BaseT
Ethernet APC Smart-UPS and Matrix-UPS Application Firmware module v3.1.0 APC Symmetra Power Array Application Firmware module v3.1.0 APC Silcon Application Firmware module v3.1.0 APC SNMP Management Card v 3.0.2 Token Ring (no web support). |
||||
|
||||
|
||||
| Hardware Requirements | ||||
|
||||
| UPS Model | APC Smart-UPS, Matrix-UPS, Symmetra Power Array, and Silcon. | |||
|
||||
| Communications Type | RS-232 via APC UPSs SmartSlot. | |||
|
||||
|
||||
| Software Requirements | ||||
|
||||
| Client software | Standard Web browser like MS IE and Netscape Navigator v4.x (or later) and SNMP based Management Platforms with APC PowerNet or Telnet console software. | |||
|
||||
|
|
|||||||
| User Interface | |||||||
|
|||||||
| APC Web/SNMP Management Card (10 BaseT Ethernet only) |
Full-featured UPS management via a Web Browser. | ||||||
|
|||||||
| SNMP-based Management | Comprehensive power management from
all major Network Management Systems via PowerNet. See Management
Platform Integration for more information. |
||||||
|
|||||||
| Telnet | Full-featured UPS management via a Telnet Console. | ||||||
|
|||||||
| WAP | Check status of most SmartUps or Matrix. | ||||||
|
|||||||
|
|||||||
| UPS Administration | |||||||
|
|||||||
| BOOTP Enabled | Card ships BOOTP enabled so that a
BOOTP server assigns an IP address, Subnet Mask and Gateway to the card. |
||||||
|
|||||||
| Configuration utility (10 BaseT Ethernet only) | Cards ship with configuration utility
that allows the Administrator to save a standard configuration file.
This file can then be downloaded over the network to mass configure
hundreds of Web/SNMP Cards. |
||||||
|
|||||||
| Security (10 BaseT Ethernet only) | User name and password in basic mode
Enhanced mode employs advanced authentication scheme using the MD5
Algorithm. |
||||||
|
|||||||
| Task Scheduling | Schedule periodic UPS self-tests. |
||||||
|
|||||||
| UPS Operating Parameters | Full control over UPS transfer
settings and sensitivity to power fluctuations. |
||||||
|
|||||||
| UPS Audible Alarm | Configure UPS alarm to beep on power
failure, power failure + 30 seconds, at low battery condition, or never
beep. |
||||||
|
|||||||
|
|||||||
| Diagnostics | |||||||
|
|||||||
| Predictive failure analysis | The UPS conducts regular internal
self-tests. When a potential problem is detected, such as the need for a
replacement battery, a notification is sent to the relevant
Administrators and users before the problem arises. This allows an
Administrator to be proactive in maintenance. |
||||||
|
|||||||
| UPS Self-test | Initiate self test of local or remote
UPS to maximize UPS uptime. |
||||||
|
|||||||
| UPS Runtime Calibration | Initiate runtime calibration of
remote UPS to maintain accurate runtime values. |
||||||
|
|||||||
| SNMP trap based events logged in NMS event console | Records power events with a
description to enable diagnosis of UPS/power problems. |
||||||
|
|||||||
|
|||||||
| Event Handling | |||||||
|
|||||||
| The Web/SNMP Management Card supports
Email capability for all UPS application firmware modules (sumx310.bin,
sy310.bin, and dp3e310.bin.) Provides Administrator with event
notification to Email capable devices. |
|||||||
|
|||||||
| Event Log | The Web/SNMP Management Card supports
on-board Event Logging capability for all UPS application firmware
modules (sumx310.bin, sy310.bin, and dp3e310.bin.) This allows you to
record and view power and system events without using PowerChute
software. The last 300 events will be displayed using Web, Telnet, and
FTP interfaces. |
||||||
|
|||||||
| Severity based action configuration | Allows an Administrator to configure
(based upon severity) which events will send notifications to which
Email/Trap recipients. |
||||||
|
|||||||
| Over 70 SNMP traps based events reported | For each of the 70+ power and
environmental events, the Administrator can configure the Network
Management System (NMS) to e-mail, page, or take other necessary
actions. |
||||||
|
|||||||
|
|||||||
| Shutdown/Reboot | |||||||
|
|||||||
| Operating System Shutdown | Gracefully shuts down operating
system (requires PowerChute plus on server). |
||||||
|
|||||||
| Multi-server Shutdown | Via network. See PowerChute
Network Shutdown for more information. |
||||||
|
|||||||
| Administrative Shutdown | Immediate, graceful shutdown/restart
of servers. |
||||||
|
|||||||
| Shutdown Parameters | Set and modify the shutdown
parameters to best suit the needs of the server being protected.
Required operating system shutdown time. |
||||||
|
|||||||
| Power Return Parameters | Enable automatic server reboot on
return of AC Power. Ensure batteries are sufficiently charged before
returning power to the server to guard against successive power outages. |
||||||
|
|||||||
| Turn off UPS | Shuts off power to connected
equipment. Excellent for situations where construction or maintenance is
scheduled in a facility. |
||||||
|
|||||||
|
|||||||
| Recommended Applications | |||||||
|
|||||||
| Any server or networking equipment protected
by APC UPSs, especially mission critical systems. Datacenter
environments benefit greatly with the high level of UPS control. |
|||||||
|
|||||||
|
|||||||
