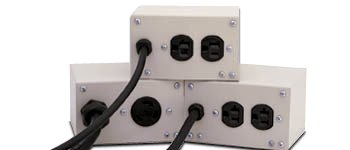

 High amperage load switching APC MasterSwitch Power Receptacles increase the
maximum load amperage controlled by a MasterSwitch unit by allowing for
loads to be shifted from the MasterSwitch to a separate Branch circuit.
The variety of Power Receptacles address different amperage and voltage
needs. The Power Receptacles have the same dimensions to allow for
custom configurations of up to three various Power Receptacle units per
Power Receptacle Tray (AP9510BAY). |
|
|||||
-- V ( Nominal input voltage ) |
|||||
 |
|||||
| Technical Specifications | Part Number | Estimated Retail Price ** | |||
|
|||||
| MasterSwitch Power Receptacle Baying Tray | AP9510BAY | 99.99 USD | |||
|
|||||
120 V ( Nominal input voltage ) |
|||||
|
|||||
| Technical Specifications | Part Number | Estimated Retail Price ** | |||
|
|||||
| MasterSwitch Power Receptacle (NEMA 5-15R) | AP9510515 | 119.99 USD | |||
|
|||||
| MasterSwitch Power Receptacle (NEMA 5-20) | AP9510520 | 119.99 USD | |||
|
|||||
208 V ( Nominal input voltage ) |
|||||
|
|||||
| Technical Specifications | Part Number | Estimated Retail Price ** | |||
|
|||||
| MasterSwitch Power Receptacle (NEMA L6-30) | AP9510L630 | 169.99 USD | |||
|
|||||
230 V ( Nominal input voltage ) |
|||||
|
|||||
| Technical Specifications | Part Number | Estimated Retail Price ** | |||
|
|||||
| MasterSwitch Power Receptacle (IEC C13) | AP95103202 | 119.99 USD | |||
|
|||||
| * Denotes regional product availability by voltage requirement. | |||||
| ** Without TAX/VAT | |||||
